Adjacent Angles Practice

Question Icon

Question 1

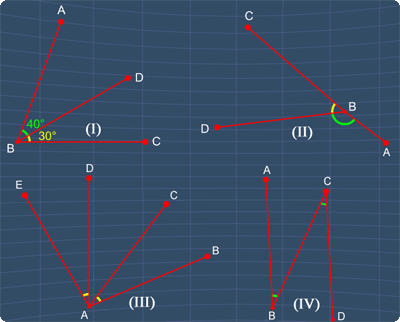

Which of the following angles are adjacent angles?

identify all the adjacent angles

Answer

Answer Icon

Select and check your answer...

A. I and II
B. II and III
C. III and IV
D. I and IV

Step by Step Solution

  • Lesson Icon

    Step 1

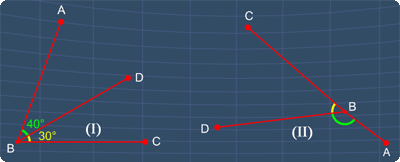

    Angles in I and II are adjacent angles. This is because each pair of angles:

    • Have a common side
    • Have a common vertex
    • Both angles do not overlap
    I and II are adjacent angles
  • Lesson Icon

    Step 2

    As for the angles in III, they are not adjacent angles. This is because these two angles do not have the same side..

    III is not adjacent angles
  • Lesson Icon

    Step 3

    As for the angles in IV, they are also not adjacent angles. This is because these two angles do not share the same vertex.

    IV is not adjacent angles
  • Lesson Icon

    Step 4

    Clearly, I and II are adjacent angles. Hence, the answer is A.
